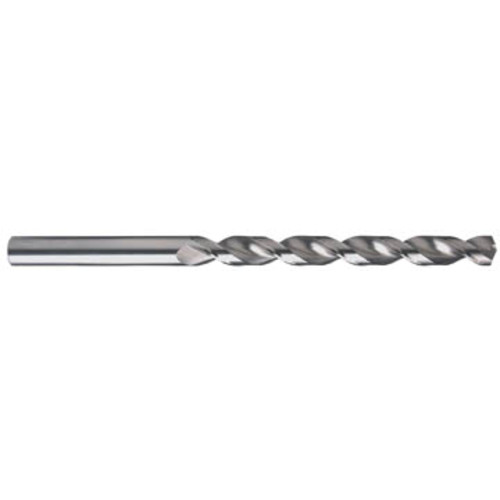

1362G HPC 3.30MM WL
Taper Length Drill; 3.3 mm Dia. × 3.3 mm Shank Dia. × 106 mm OAL × 69 mm Flute Length ; Cobalt ; TiN ; Series 1362
| Drill Bit Size / Cutting Diameter (DC) | 3.3 mm | Flute Length | 69 mm |
| Decimal Equivalent | 0.1299 | Flute Type | Regular Spiral |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.3 mm | Measurement Type | Metric |
| Coating | TiN | Overall Length (OAL) | 106 mm |
| Coolant Supply Property (CSP) | External | Point Shape | Self-Centering |
| Cutting Depth | 69 mm | Shank Type | Round |
| Shank Size (SS) | 3.3 mm | Tool Type | 7 X Diameter |
| L to D Ratio | 7xD | Series/List # | 1362 |
| Cutting Edge Material | Cobalt |
Product Features
| Remarks | •Taper Length HPC Cobalt High Performance Wide Land Parabolic Flute Drills •Wide Land Parabolic Flute Drills •The next generation in parabolic flute design, are effective in a wider range of materials and applications than standard parabolic flute drills •An Enhanced Flute Design with reinforced web provides increased drill strength and rigidity, straighter closer tolerance holes, improved chip formation and evacuation, improved coolant flow to the drill point and higher speeds and feeds for increased productivity •Titanium Nitride Coating (TiN) •An excellent all around coating, offers increased hardness and wear resistance, improved heat resistance, high lubricity, reduced edge build-up, improved surface finish and higher speeds and feeds •Increase productivity and tool life •Longer flute length and longer overall length for increased reach and deeper hole drilling | Country of Origin | France |
Shipping Info
Additional Fees and Notes
0
Package Length
7.87500
Package Width
.50000
Package Height
.50000
Package Weight
0.038
