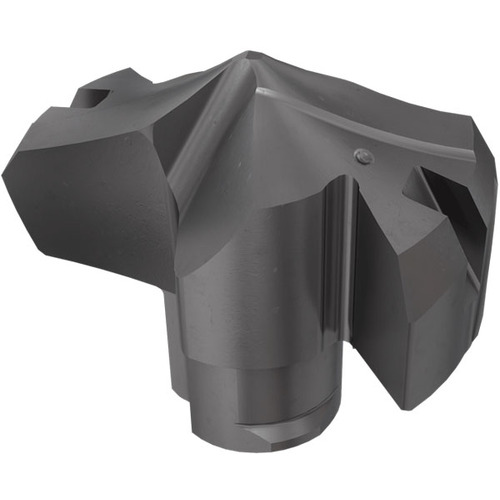

HCP 0632-IQ IC908
Drill Head; 0.632″ Dia. × 0.366″ Thickness ; 137 Degrees ; IC908 ; Carbide ; TiAlN

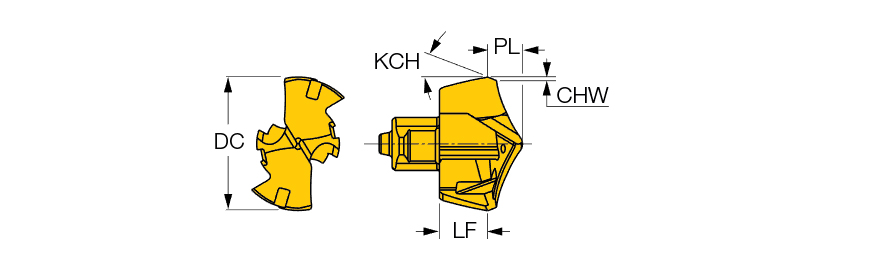

| Cutting Diameter (DC) | 0.632″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.366″ |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 0.15393″ |
| Grade | IC908 | Point Angle (SIG) | 137 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Protruding Length (LPR) | 0.366″ | Corner Chamfer Width (CHW) | 0.024″ |
| Insert Seat Size Code (SSC) | 16.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 0.212″ | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable self-centering drilling heads with a unique cutting edge profile which enables drilling up to 12XD without requiring a pilot hole operation. Can be used on ISO P and ISO K Materials. | Country of Origin | Israel |
| Remarks | Advance Self-Centering and high surface finish |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.035
